3D Laser Scanning
On-site terrestrial laser scanning captures existing conditions in high-density, accurate point cloud data.
A Division of JD Stairs
Precision 3D Scanning, Turned Into Build-Ready Drawings
JD Stairs Lidar Scanning captures your site or structure in millimeter-accurate detail and delivers clean, CAD-ready as-built drawings — so architects, contractors, and engineers can design and build with confidence.
Backed by JD Stairs — Metal + Wood Artisans
High-Precision Capture
Millimeter-level accuracy from terrestrial 3D laser scanning.
CAD Ready
Deliverables built for Revit, AutoCAD, and other common CAD workflows.
Fast Turnaround
Efficient field capture and streamlined drafting to keep projects moving.
Built on Field Experience
Grown out of JD Stairs' decades of hands-on fabrication and installation.
About the Division
Scanning & Drafting, Grounded in Real Fabrication Experience

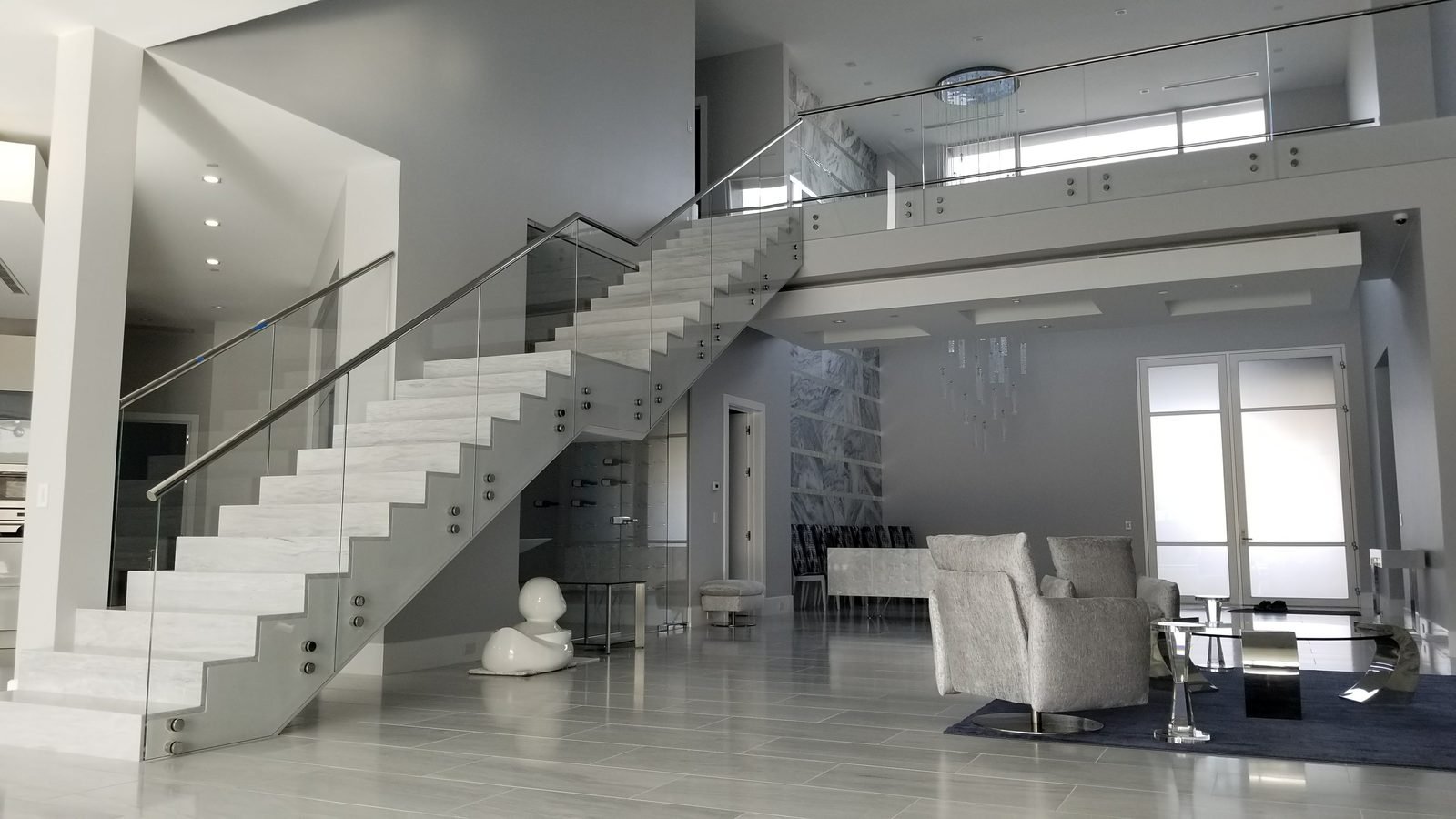

JD Stairs has spent years designing, fabricating, and installing custom metal and wood staircases, railings, doors, and structural steel — work that demands precise measurements and drawings that hold up on the job site.
JD Stairs Lidar Scanning takes that same standard for accuracy and applies it to 3D laser scanning and as-built drawing services for any project, not just our own — giving architects, contractors, and engineers a dependable source of truth before design and construction begin.
Why it matters: Drawings built from real, measured site conditions reduce costly surprises, rework, and change orders later in a project.
What We Offer
Scanning & Drafting Services
From initial site capture to finished drawings, we handle the full workflow — or plug into wherever you are in your project.
As-Built Drawings
Accurate 2D floor plans, elevations, and sections generated directly from scan data.
Point Cloud to CAD
Clean, organized CAD files and Revit-ready models built from registered point cloud data.
Renovation & Historic Documentation
Detailed documentation of existing structures for renovation, restoration, and preservation projects.
Construction Verification
Compare built conditions against design intent to catch discrepancies before they become problems.
Site Documentation
Comprehensive digital records of a site or structure at a point in time, for planning or archival purposes.
How It Works
From Site Scan to Finished Drawing
A straightforward four-step workflow designed to fit into your project timeline.
-
1
Site Scan
We capture the space or structure with terrestrial laser scanning equipment on-site.
-
2
Point Cloud Processing
Scan data is registered, cleaned, and merged into a single accurate 3D point cloud.
-
3
CAD Drafting
Our team drafts as-built plans, elevations, or a 3D model directly from the point cloud.
-
4
Delivery & Review
You receive finished files in your preferred format, with revisions available if needed.
Investment
Lidar Scanning Pricing
Choose the deliverable that fits your project. Pricing is based on the total square footage of the space.
| Square Footage | Matterport | 2D Floor Plan | 3D Model | Point Cloud Delivery |
|---|---|---|---|---|
| Up to 2,000 sq ft$500 minimum · 1 room | $500 | $500 | $1,500 | +$500 |
| Up to 3,000 sq ft | $750 | $750 | $2,250 | +$500 |
| Up to 4,000 sq ft | $1,000 | $1,000 | $3,000 | +$500 |
| Up to 5,000 sq ft | $1,500 | $1,250 | $3,750 | +$500 |
| Up to 7,500 sq ft | $2,000 | $1,500 | $4,500 | +$500 |
| Up to 10,000 sq ft | $3,000 | $1,750 | $5,250 | +$500 |
| Up to 15,000 sq ft | $4,000 | $2,000 | $6,000 | +$500 |
| Up to 20,000 sq ft | $5,000 | $2,250 | $6,750 | +$500 |
| Over 20,000 sq ft | Custom quote | |||
$500 minimumApplies to a single room or space up to 2,000 sq ft.
6 months of hosting includedYour data is hosted for 6 months. A renewal fee applies after that period.
Add point cloud dataPoint cloud data can be added to any package for +$500.
Our Work
Project Gallery

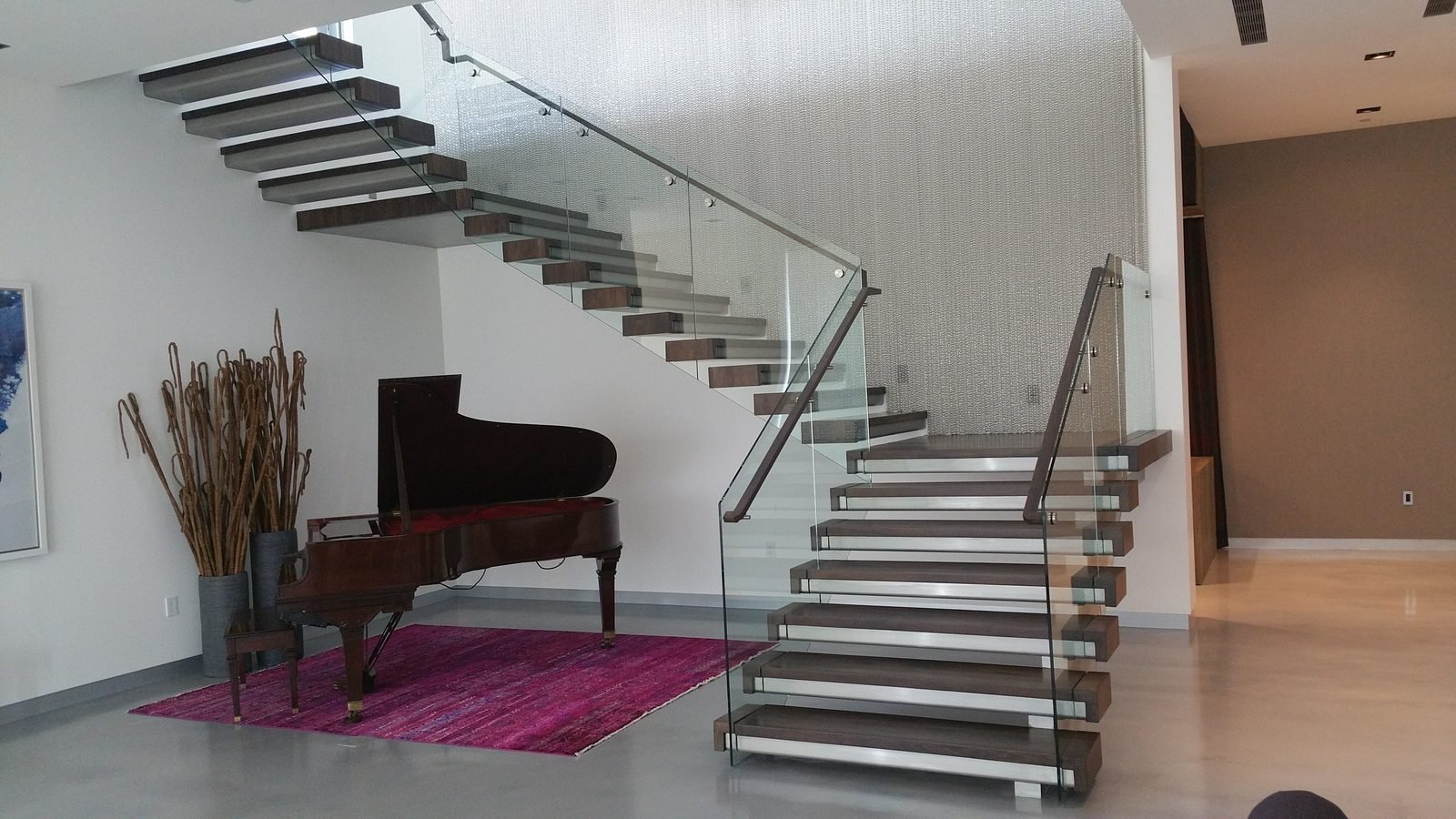

Note: the residential photo shows real JD Stairs craftsmanship; the commercial and historic photos are stock images representing the type of work described. None are documentation from a completed Lidar Scanning project yet — swap in real scan-to-drawing examples as they become available.
Residential
Residential Stair Remodel
Existing-conditions scan for a custom staircase replacement.
Commercial

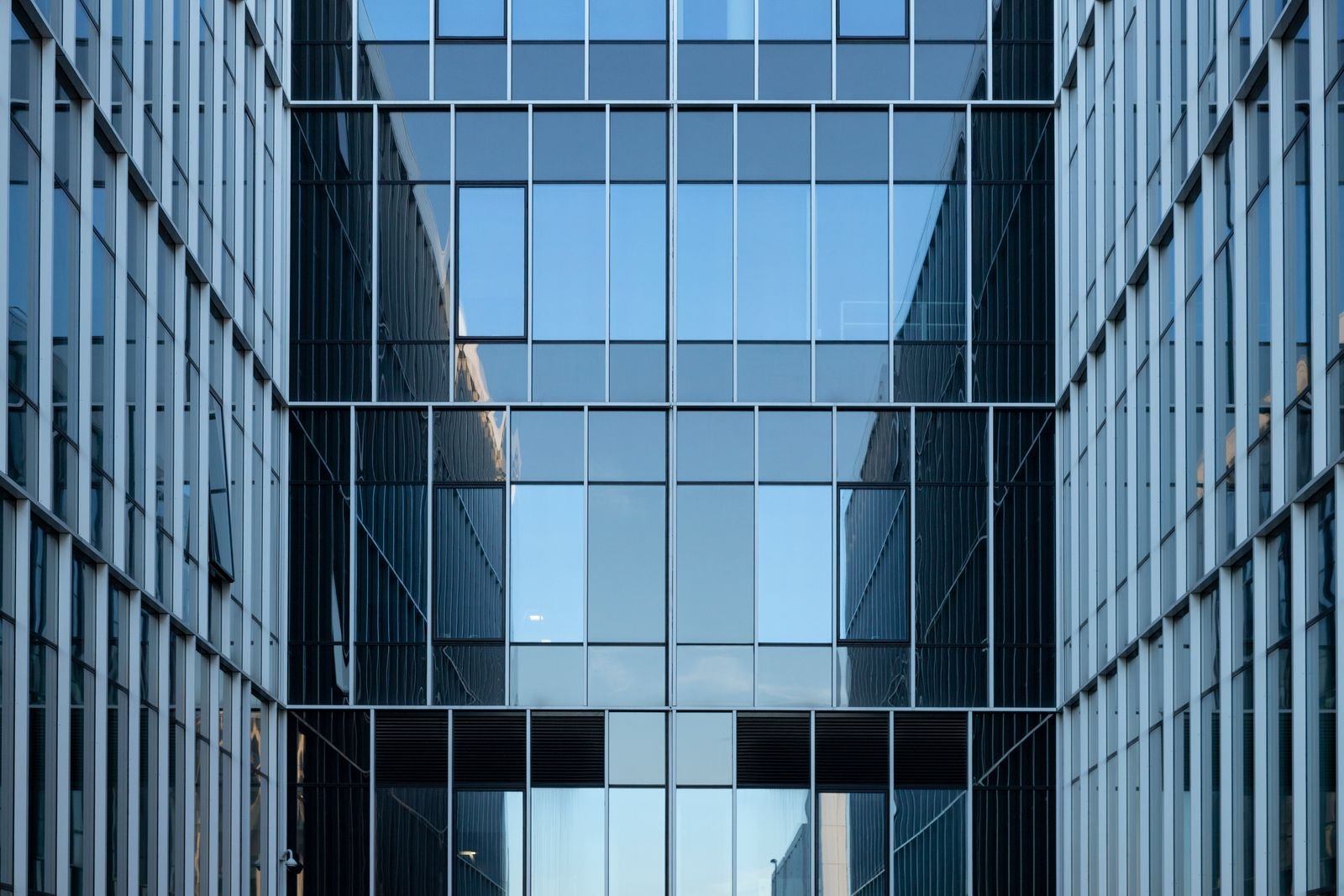

Commercial Building As-Built
Full-floor point cloud capture converted into CAD floor plans.
Historic

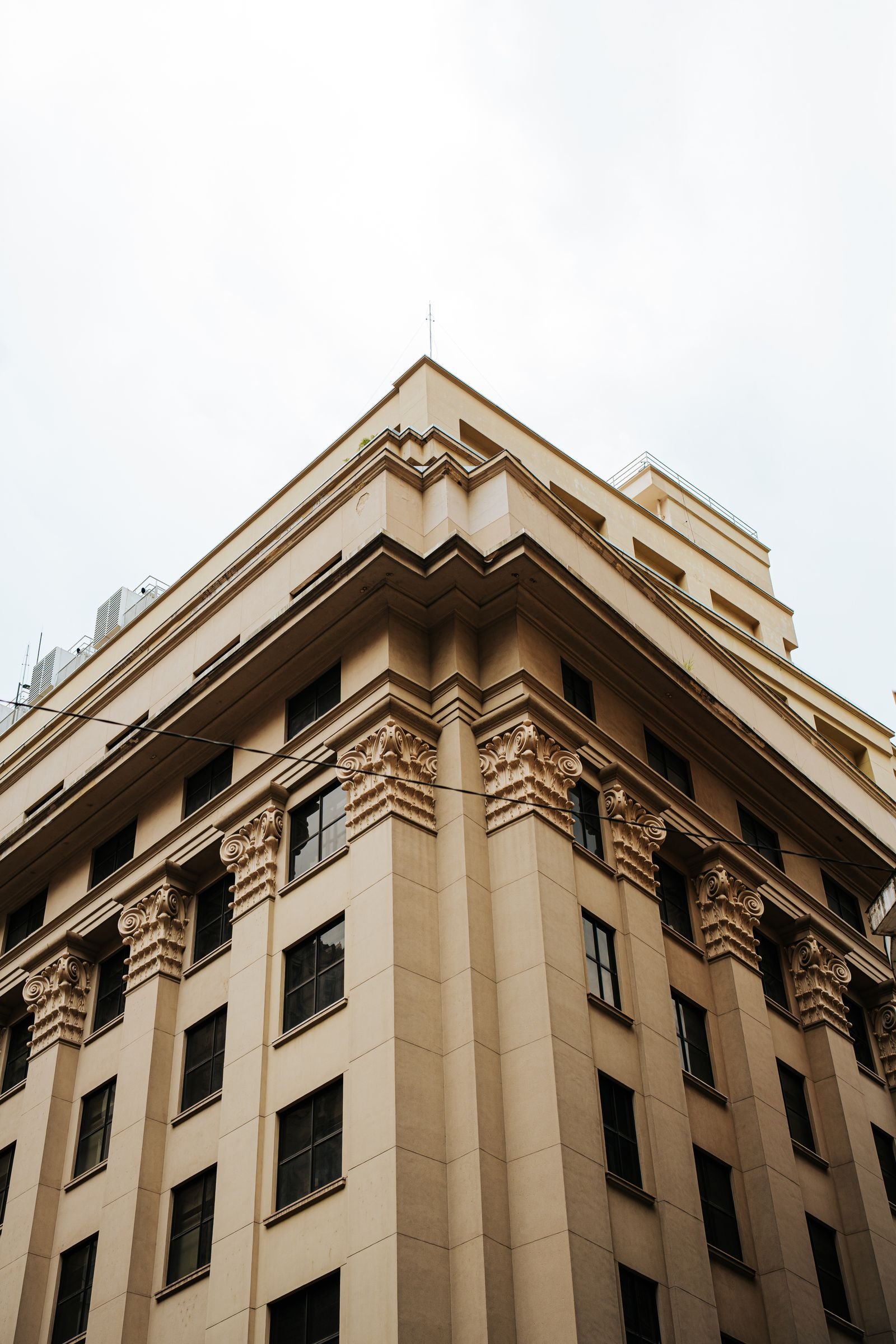

Historic Facade Documentation
